[Black Knight]
2023
tools
Rhino / CNC / 3d printing / LED / acrylic
Rhino / CNC / 3d printing / LED / acrylic

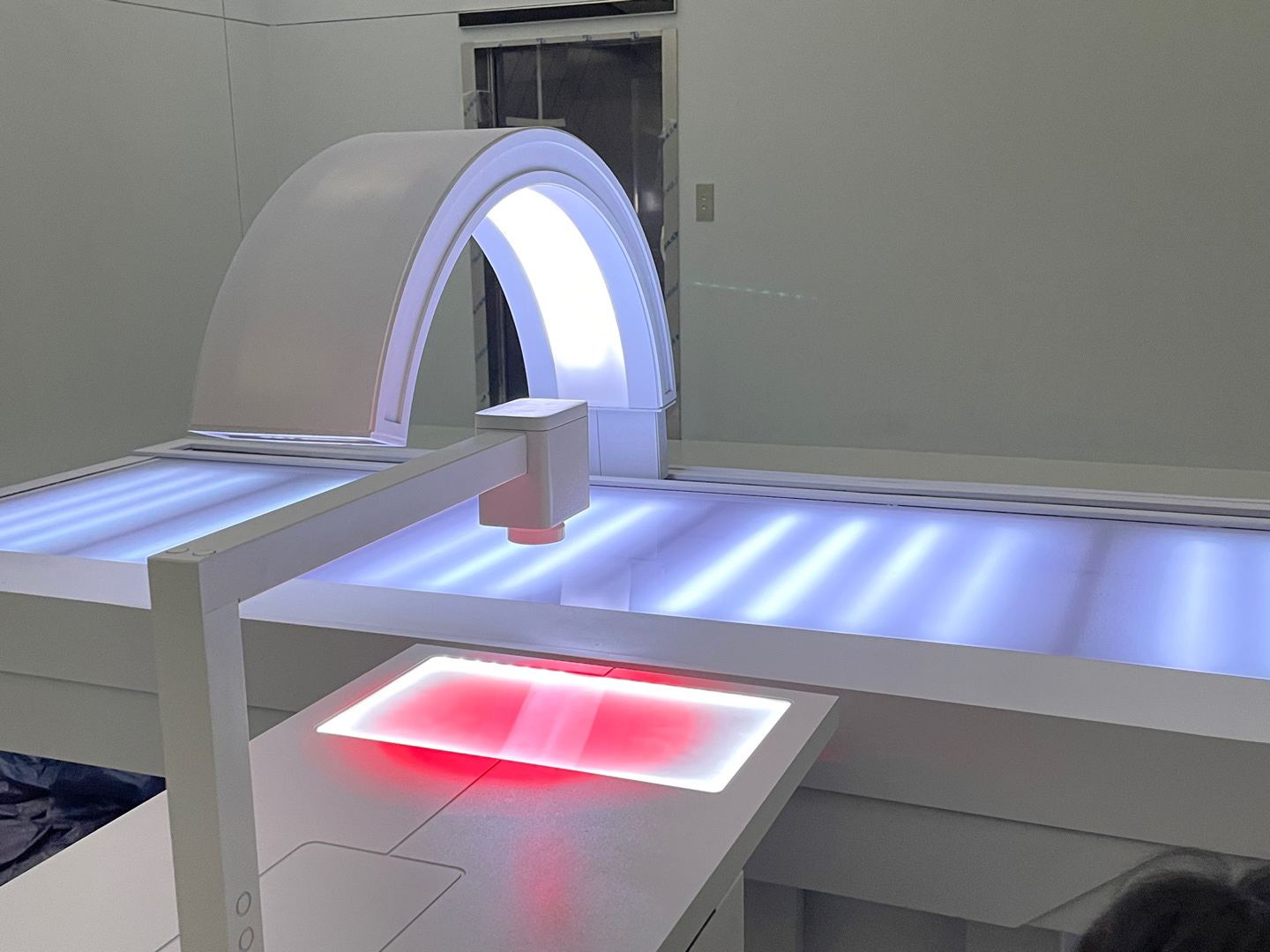

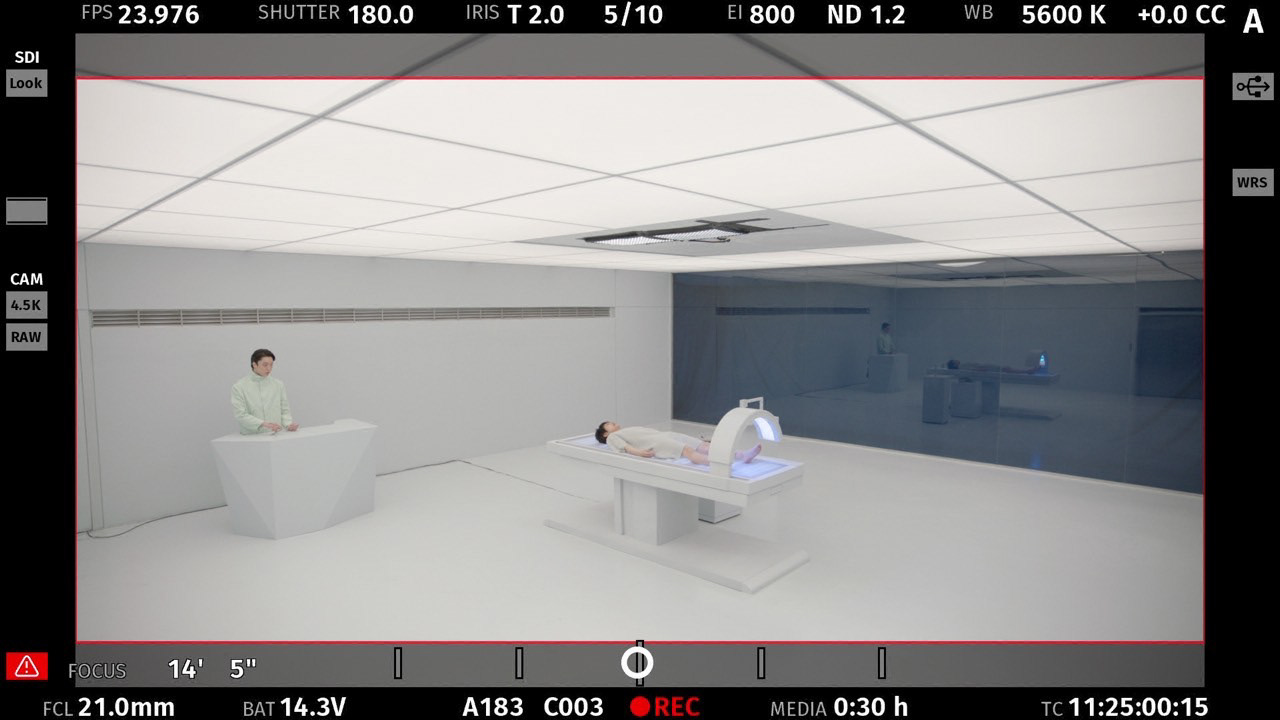

In the universe of [Black Knight], individuals require a QR code tattooed on their hand. Without a QR code, one cannot access anything, including essential resources like fresh air and water. This QR code generator and scanner is for the former refugee 'Sawol,' who did not have his own QR code but will now have one.
1. QR code generator
The design of the QR code generator features a minimalistic design with almost no visible seam lines. To bring this design into the real world, I had to use an endmill to create a deep cavity beneath the main design component. Additionally, for the red light glow at the end of this generator, a '7'-shaped pillar was also meticulously carved out. The joints, which unite the entire piece, have been discreetly concealed.

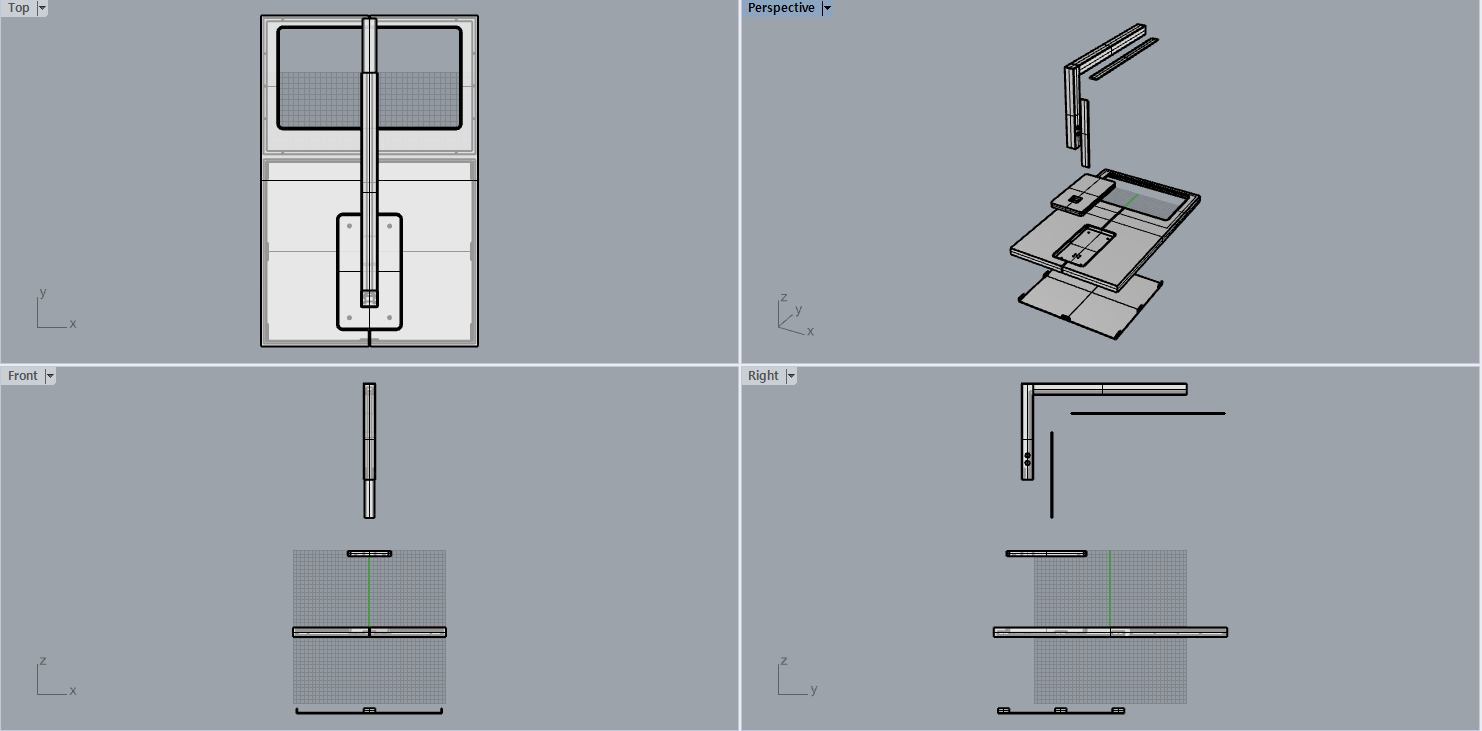

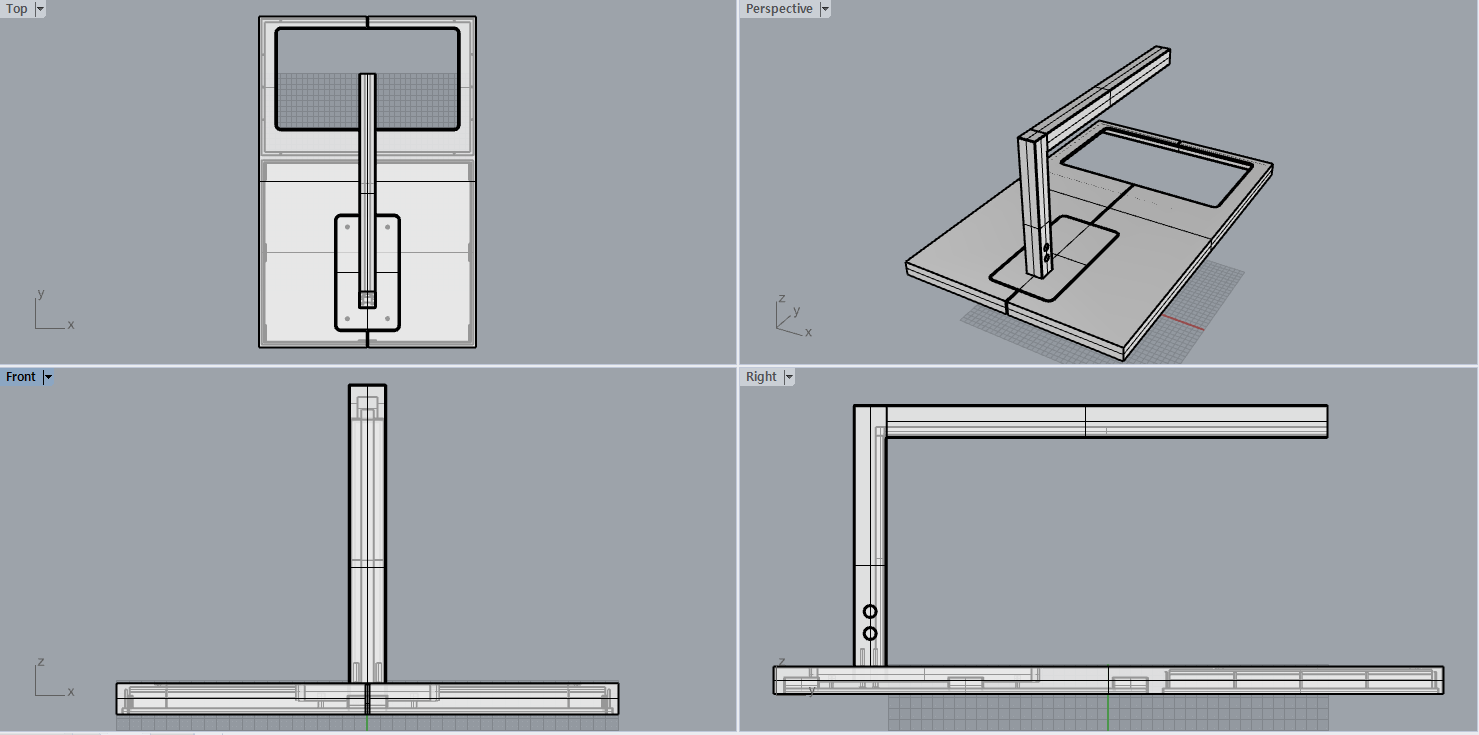

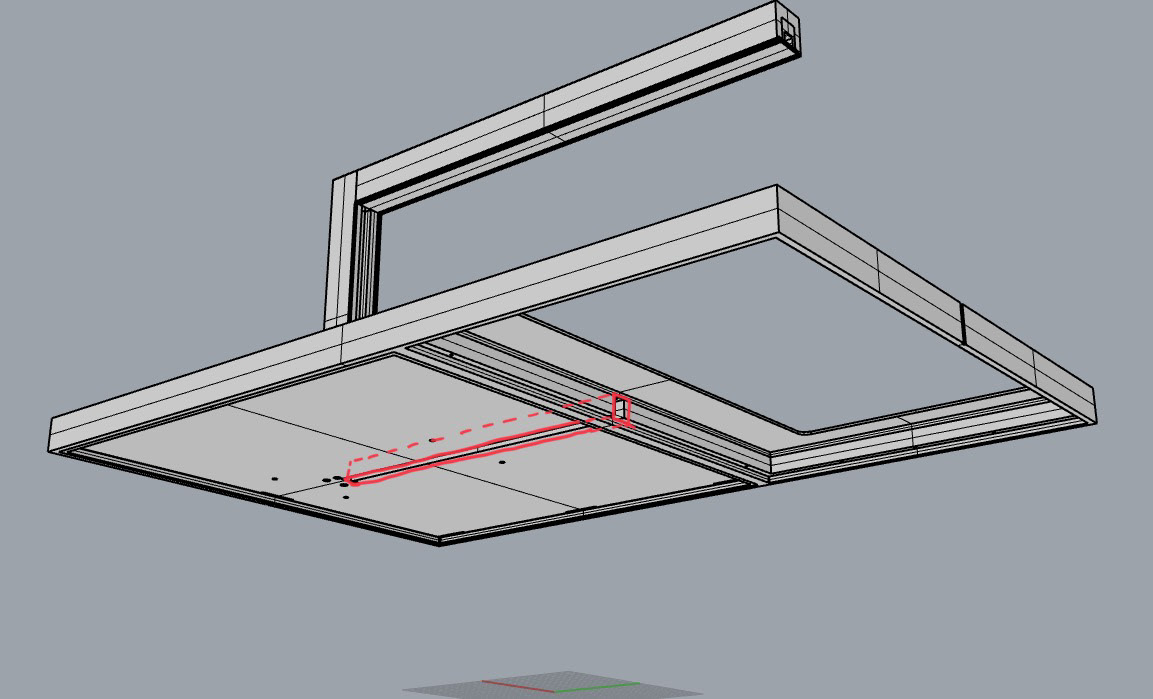

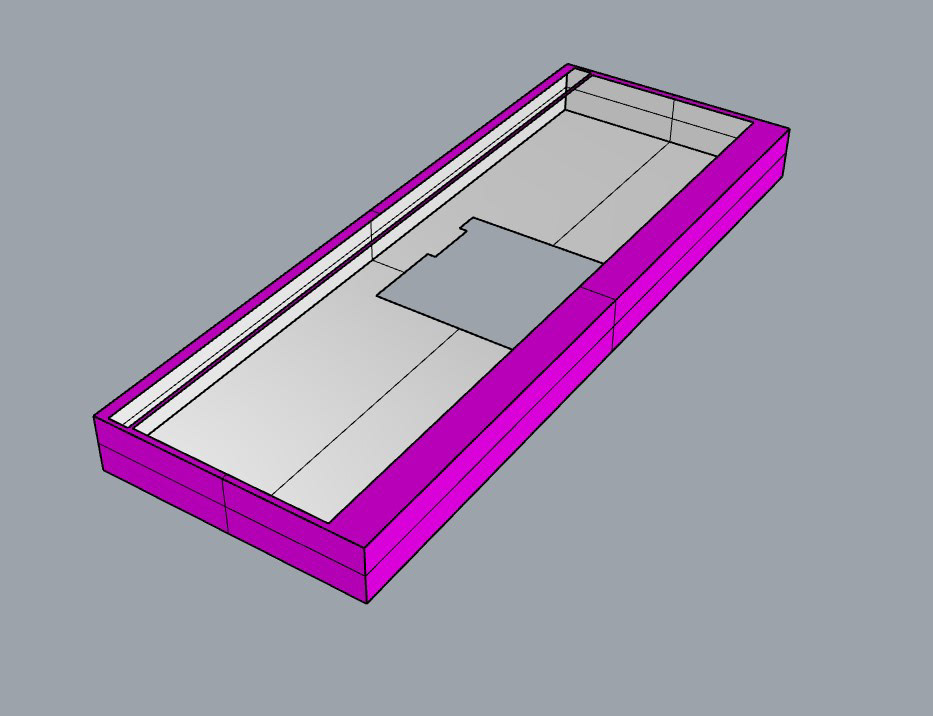

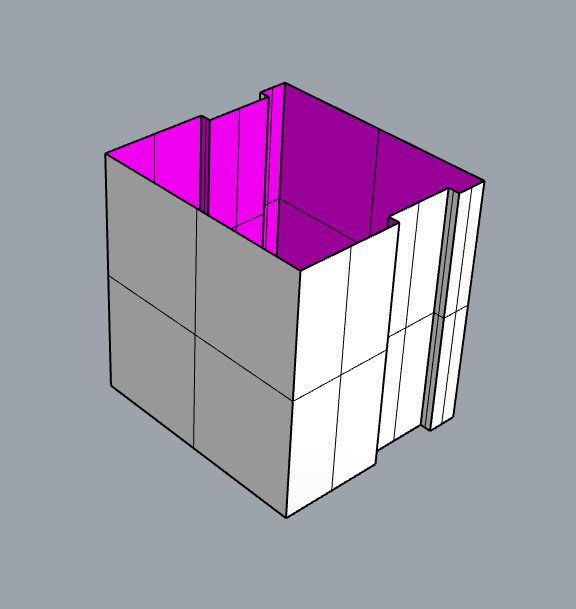

structure design

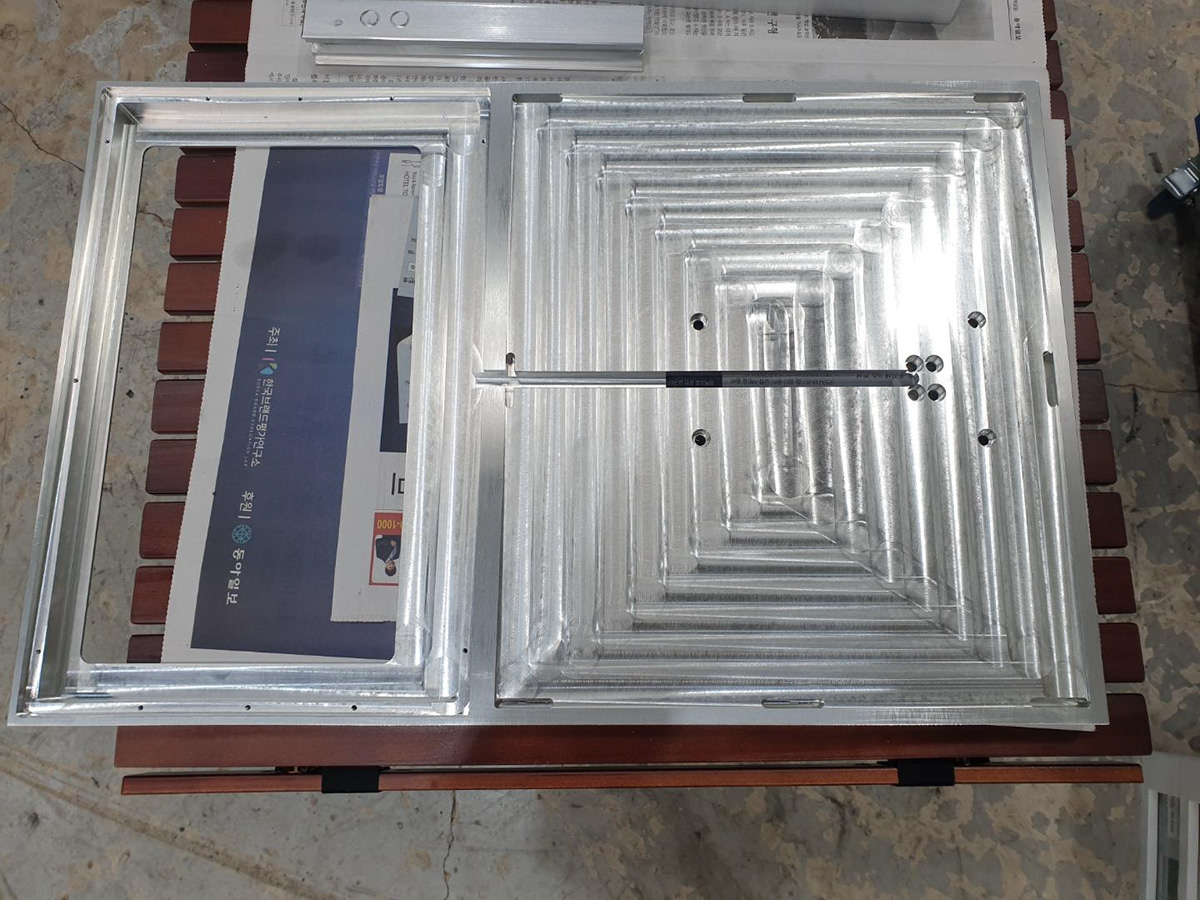

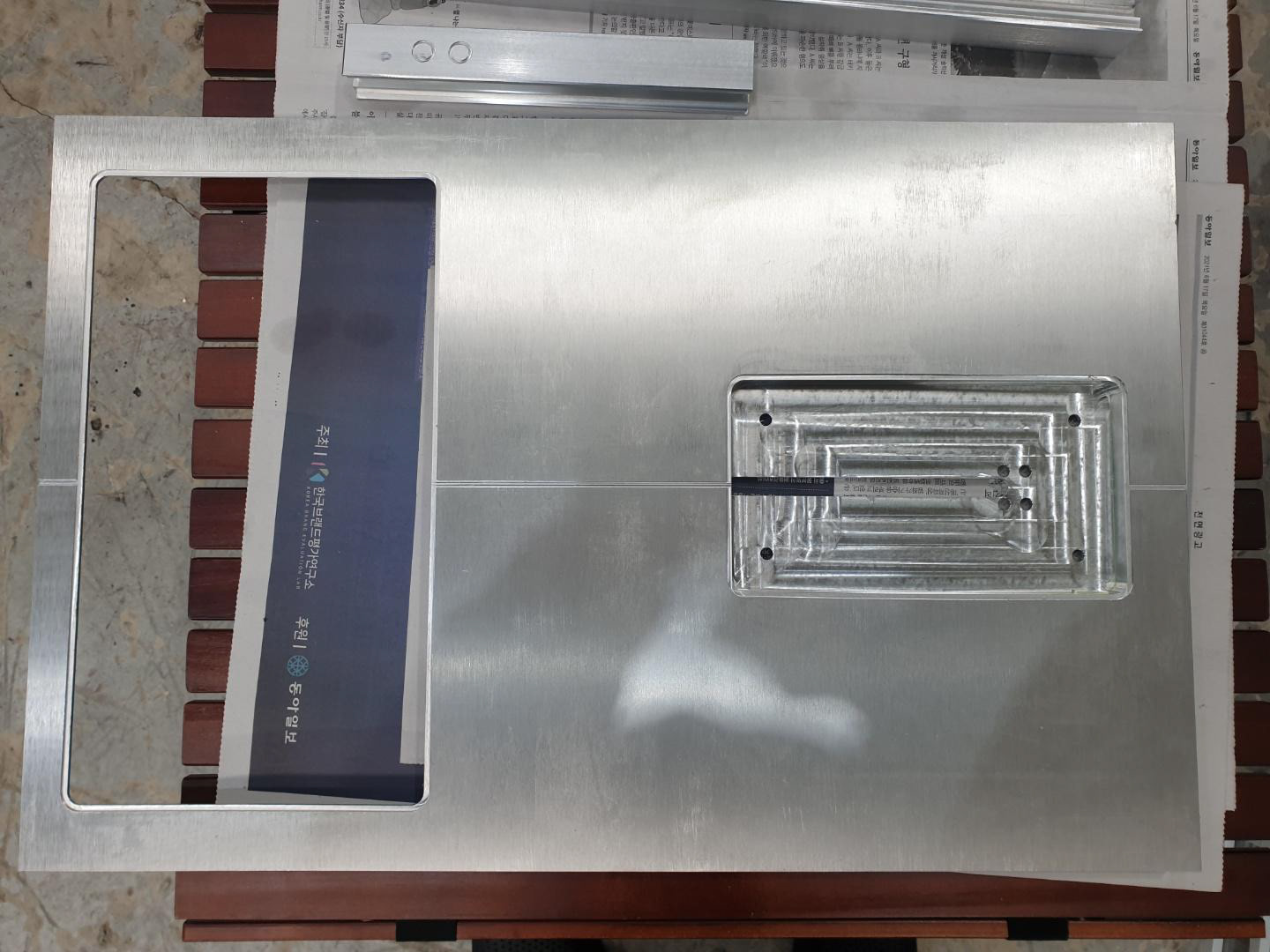

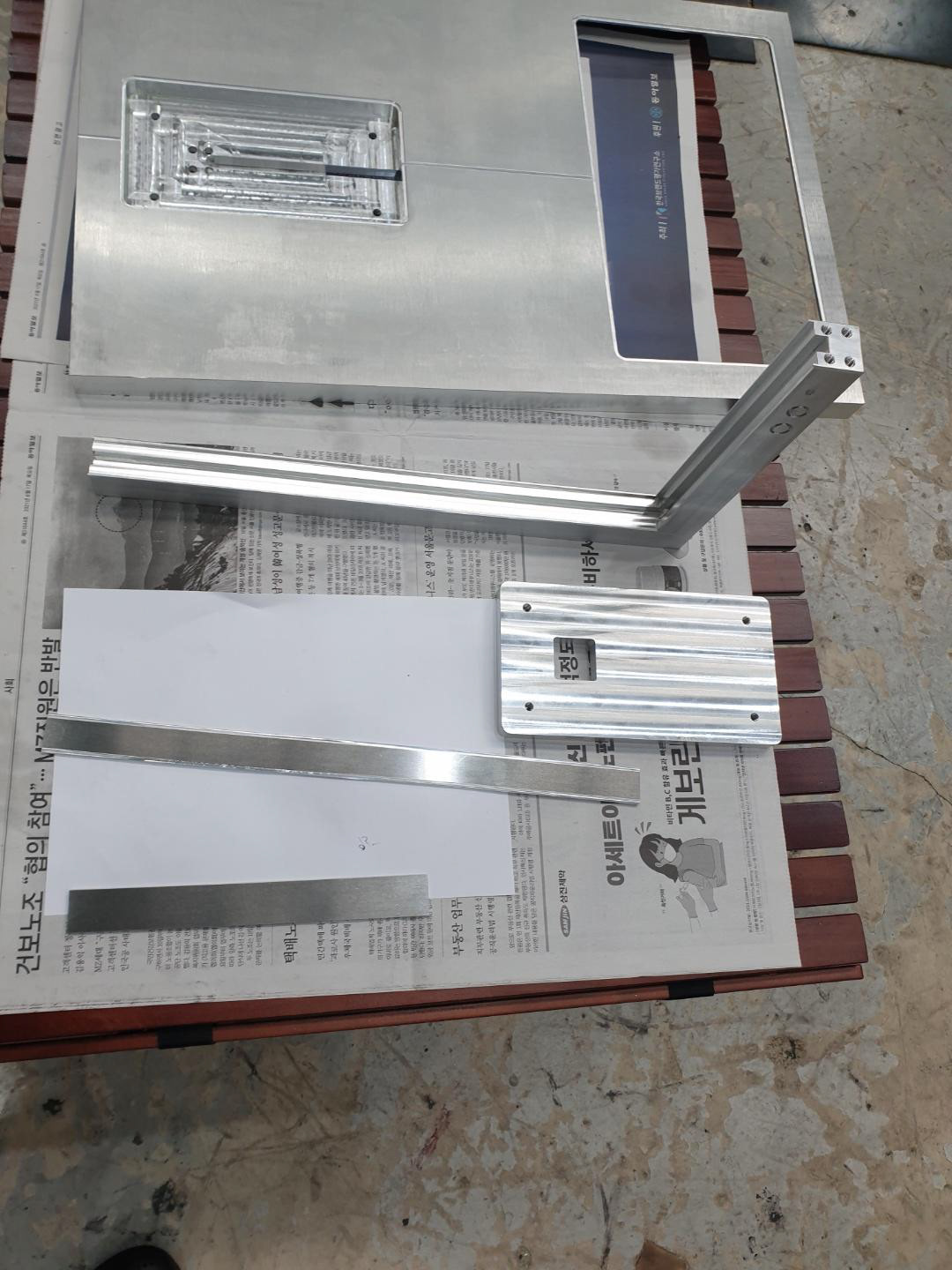

manufacturing

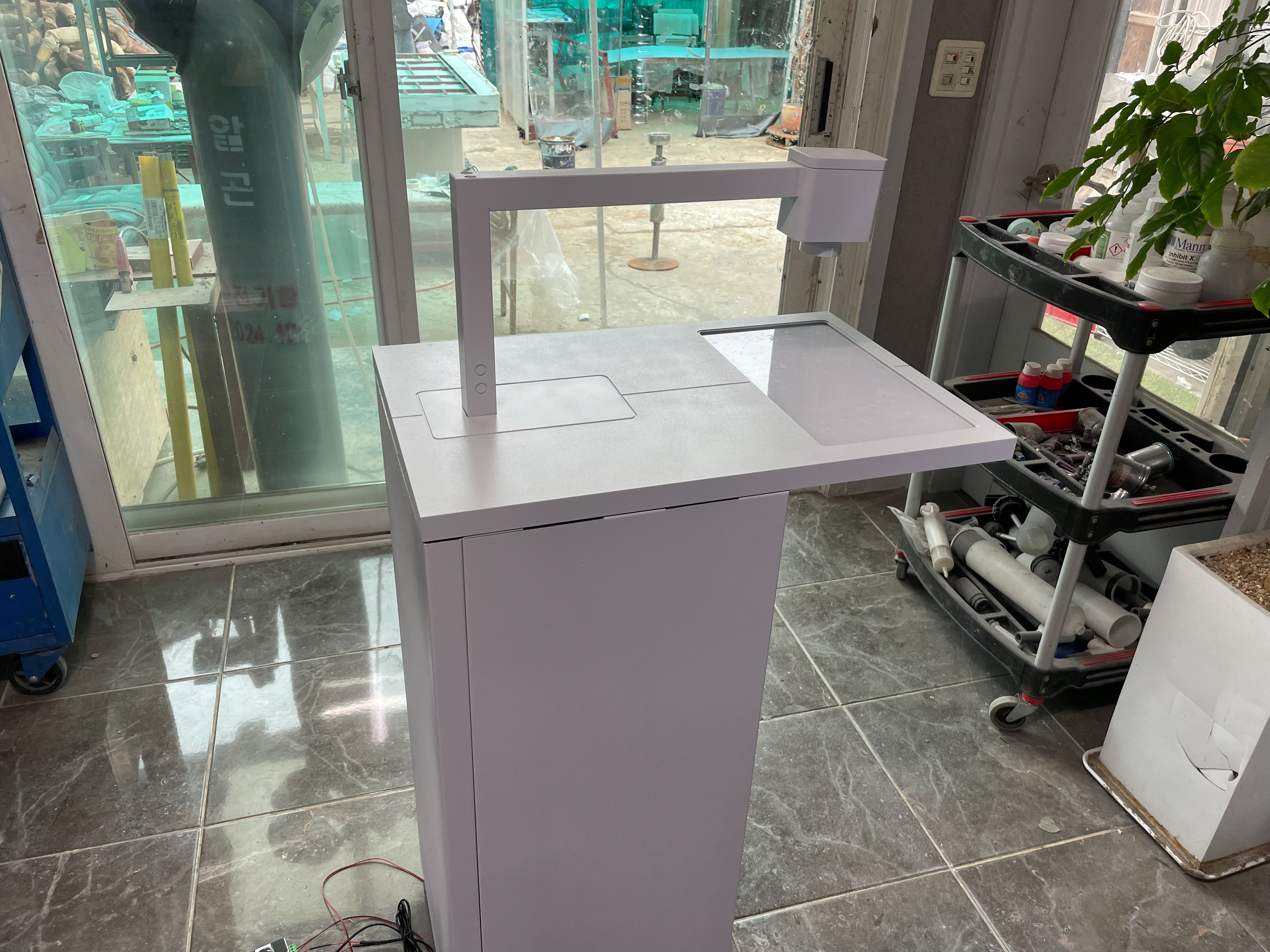

final version
2. scanner bed

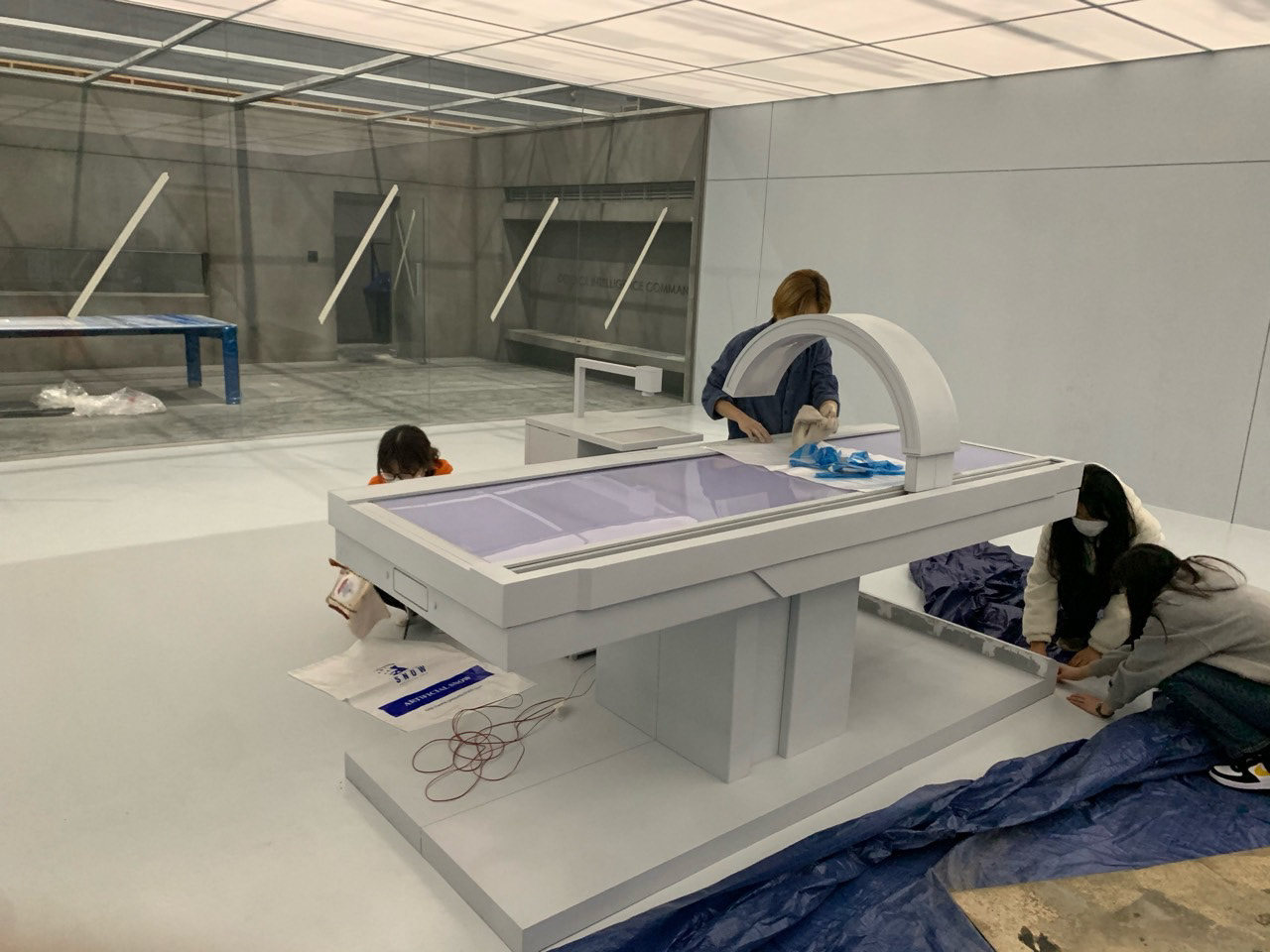

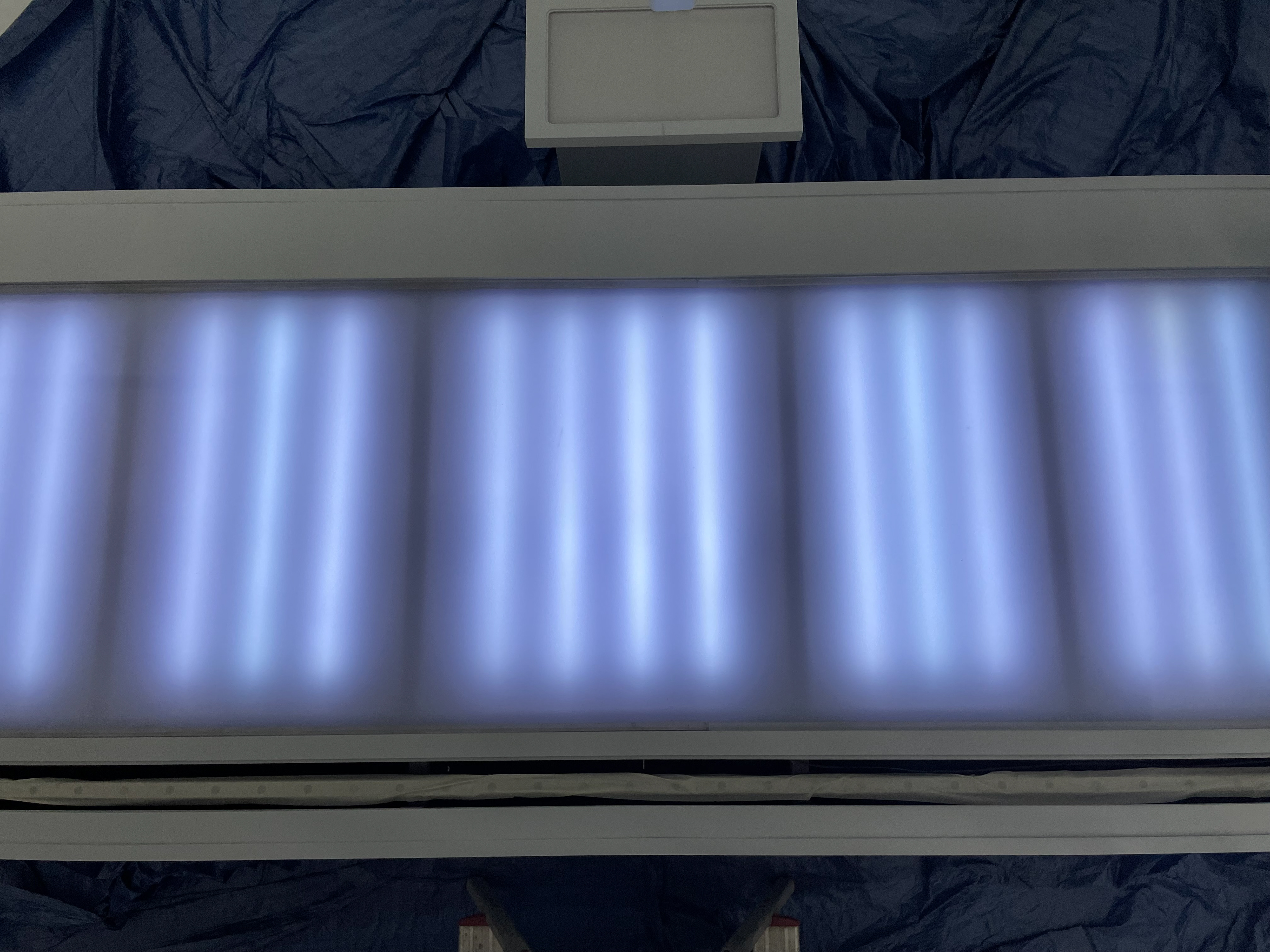

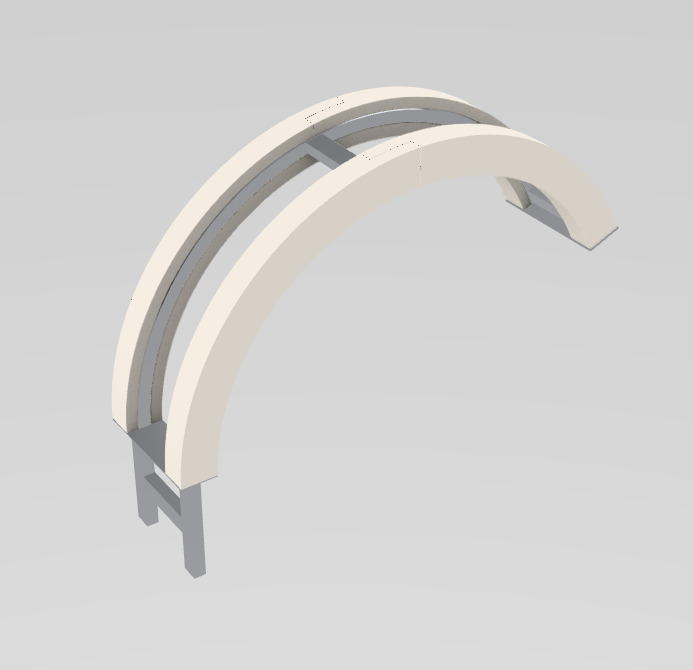

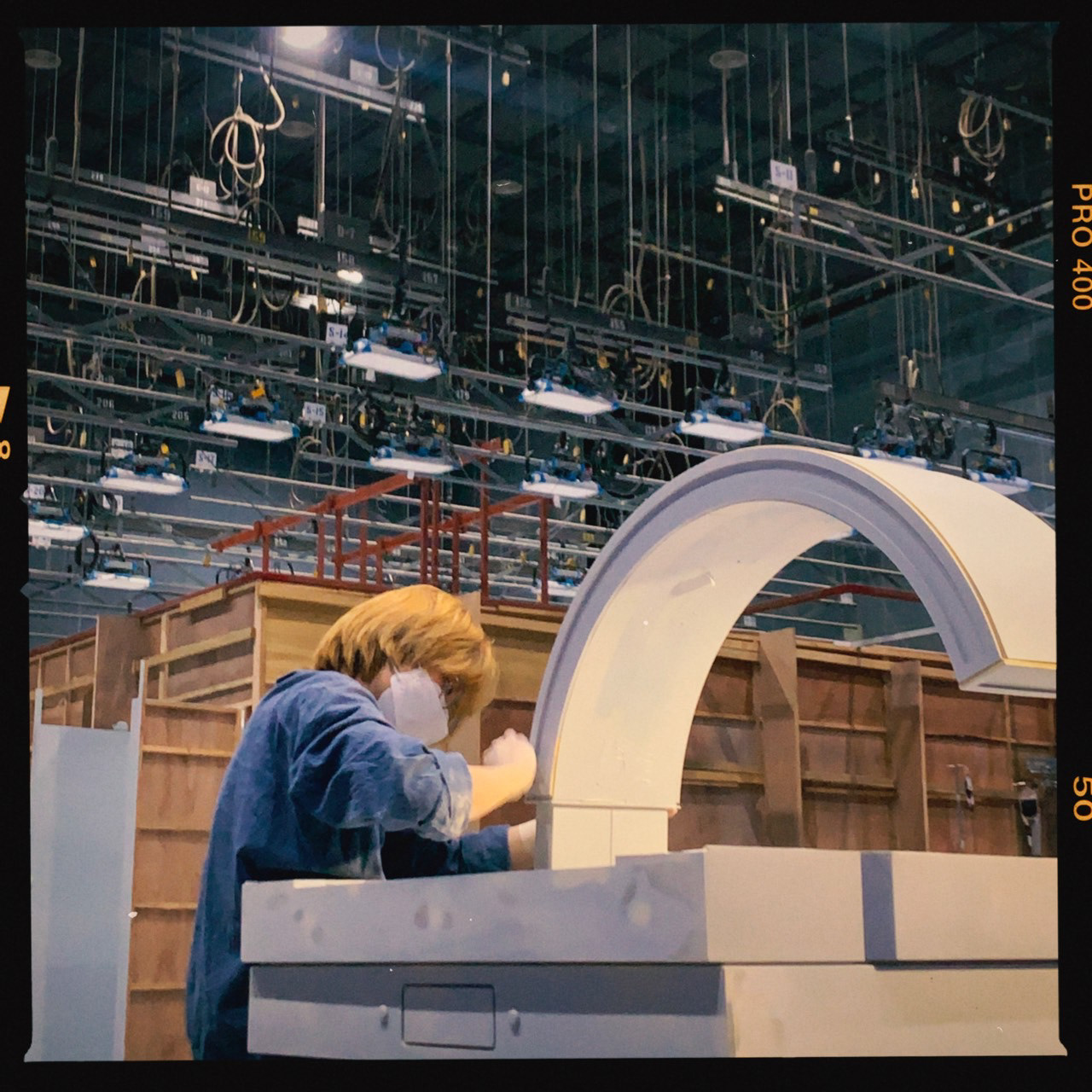

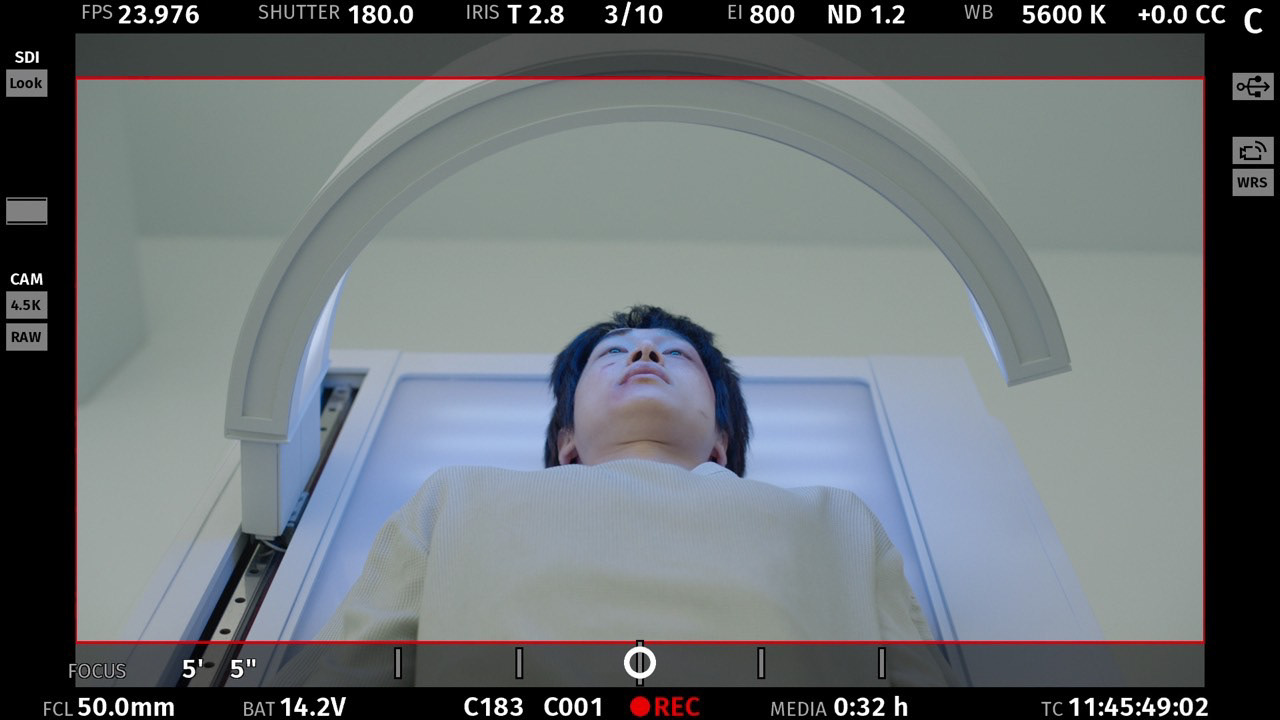

The most crucial feature of this bed was its solidity, as it needed to ensure the safety of the actor while during the scene. Simultaneously, the lying-down section had to be hollow to illuminate the specific area. The bed's structure was designed with a strong emphasis on these factors.
Furthermore, because the scanning arc needed to move up and down with the lights on, careful consideration was given to the rail and the space for electrical wiring.

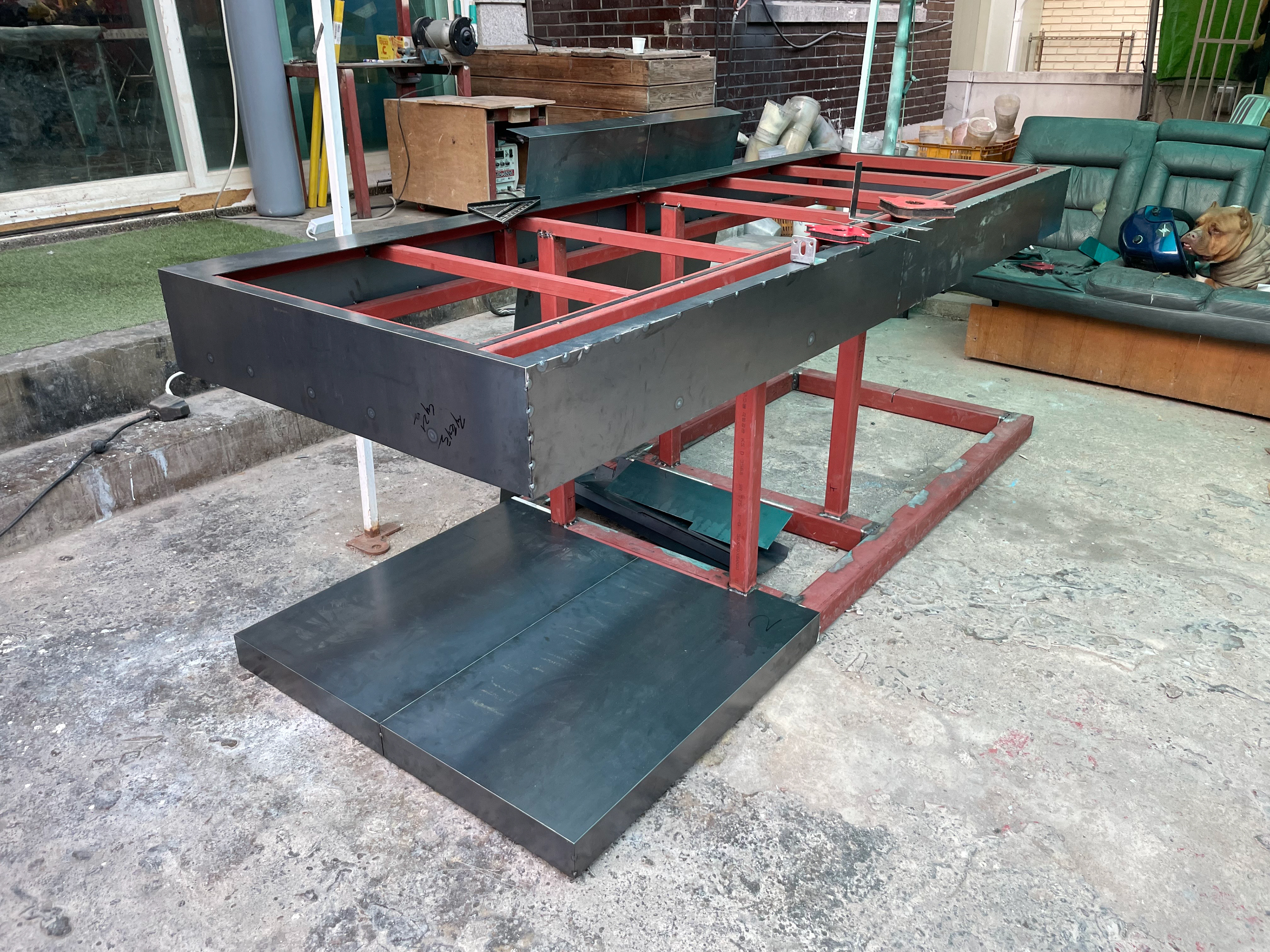

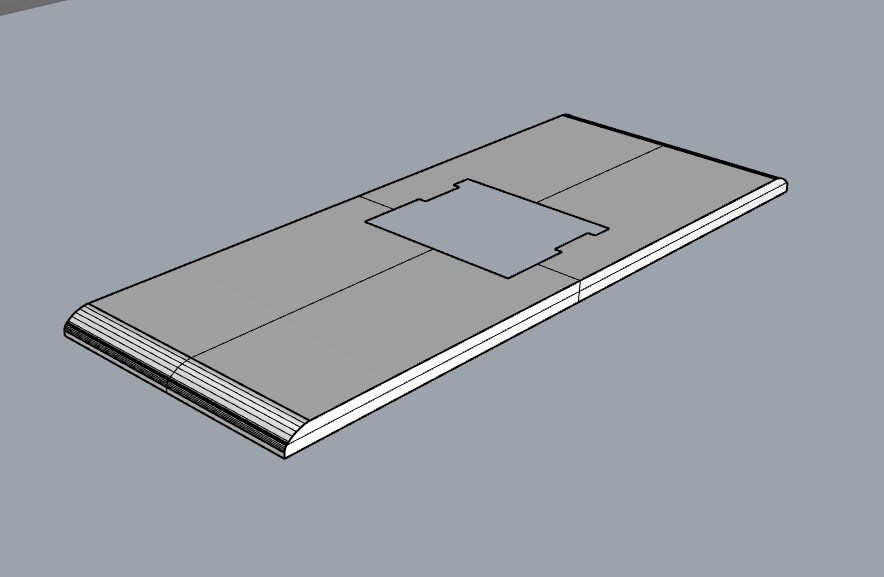

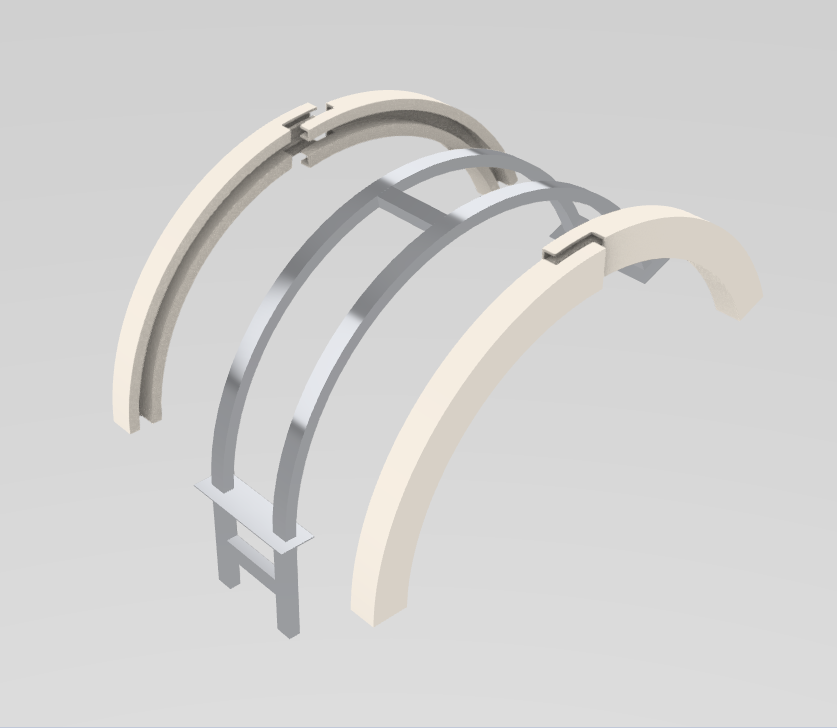

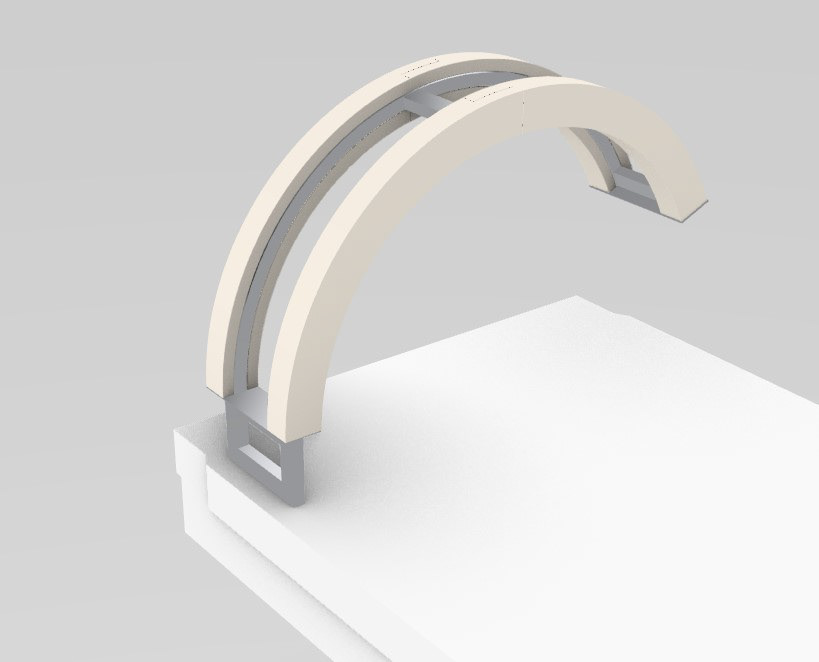

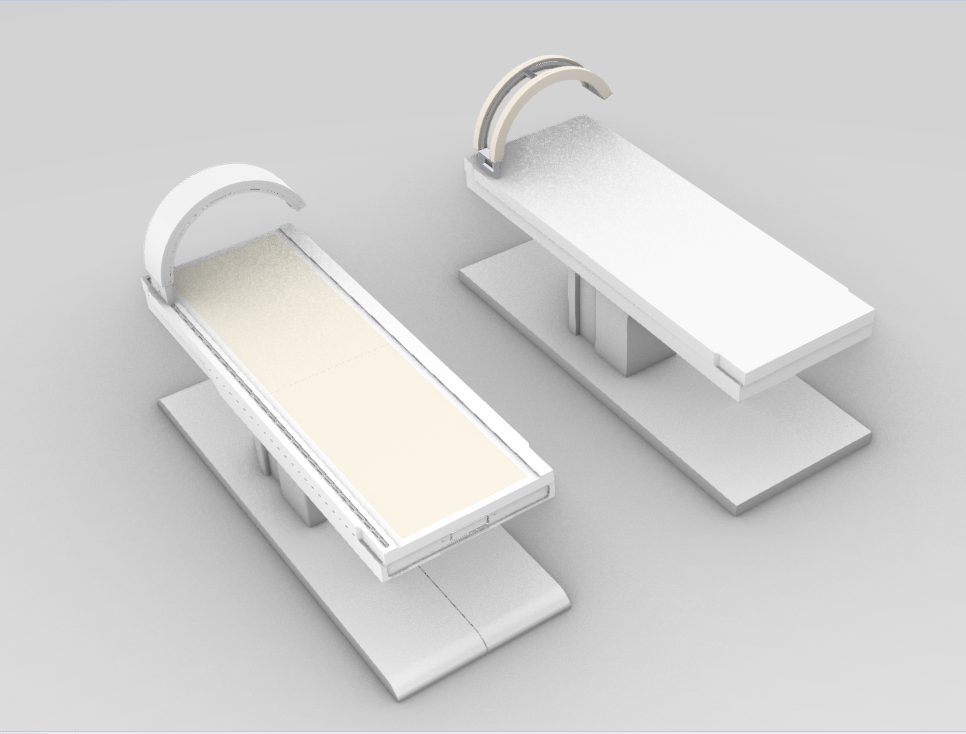

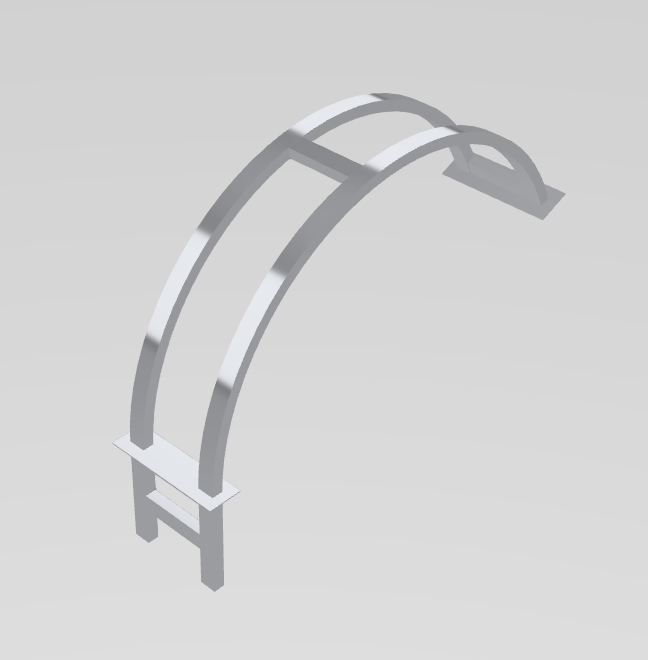

structure design

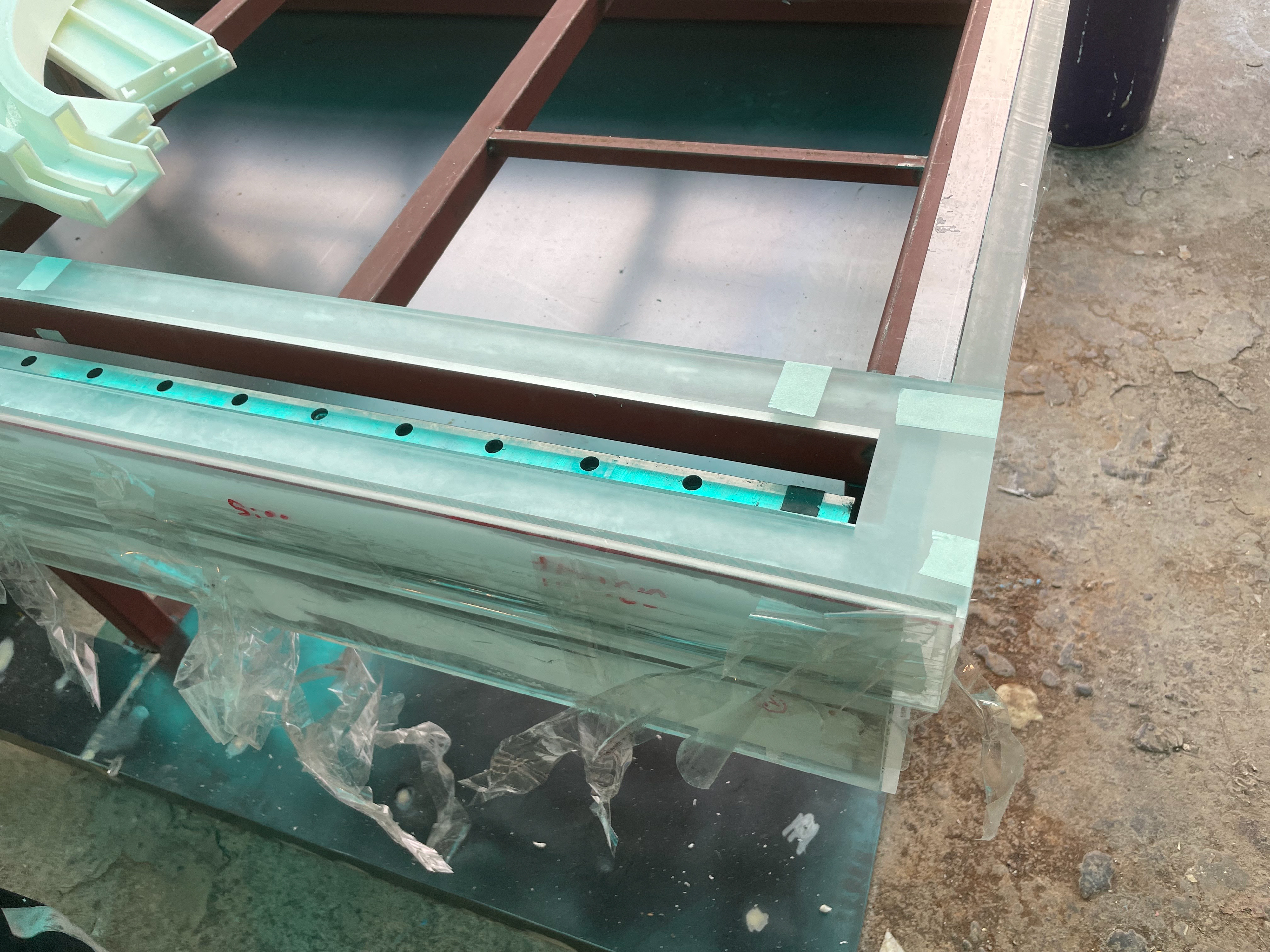

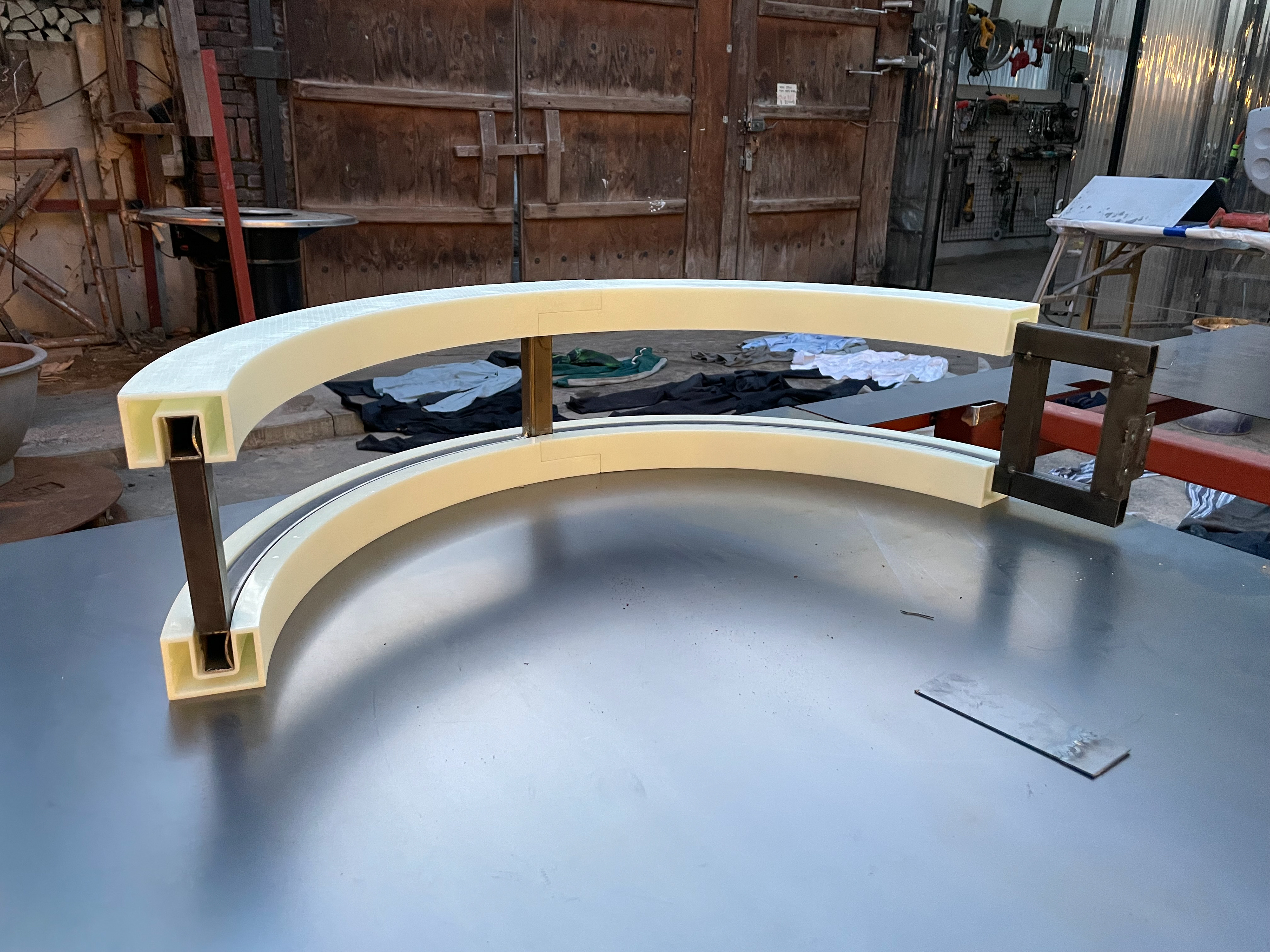

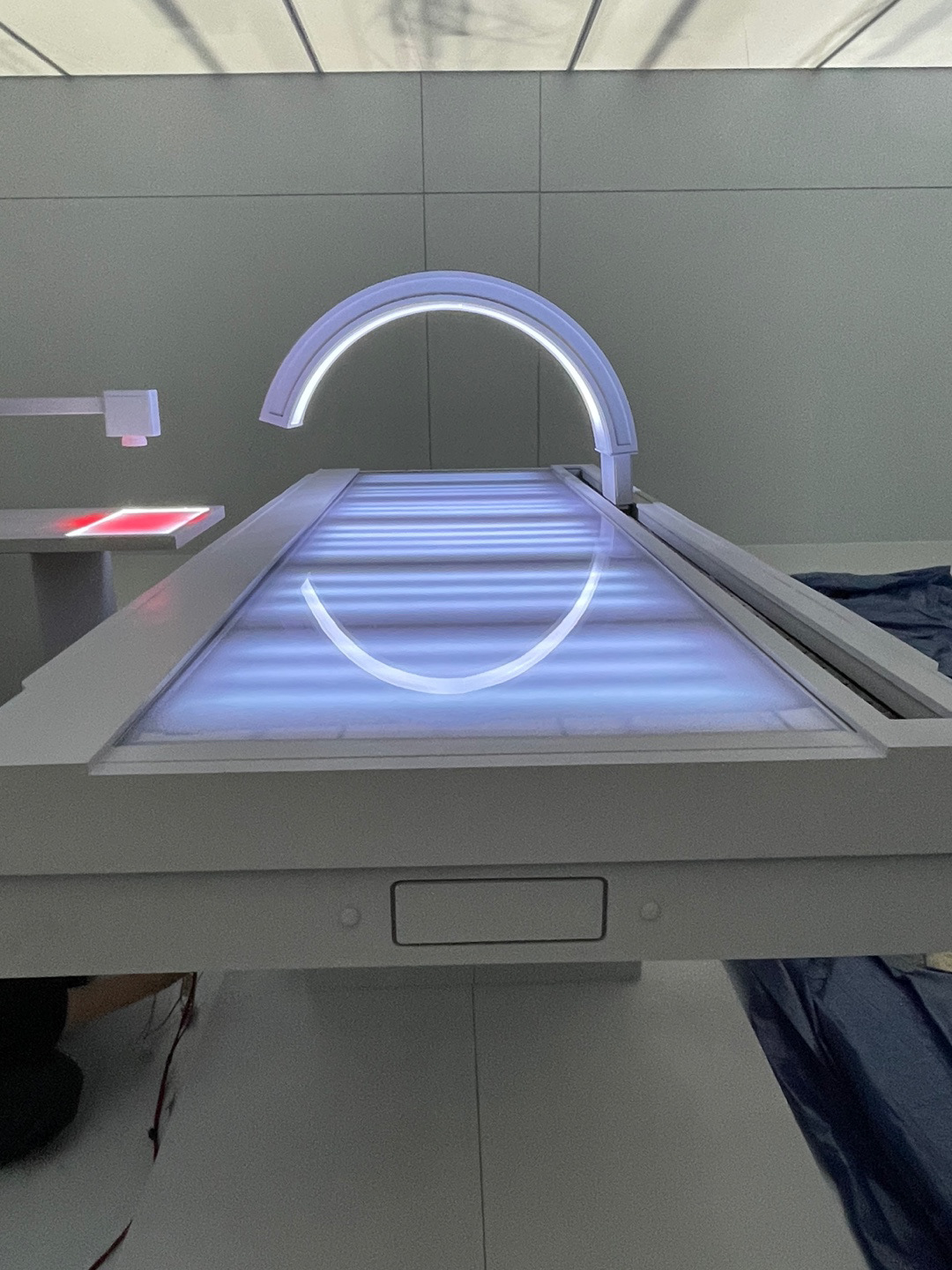

manufacturing
